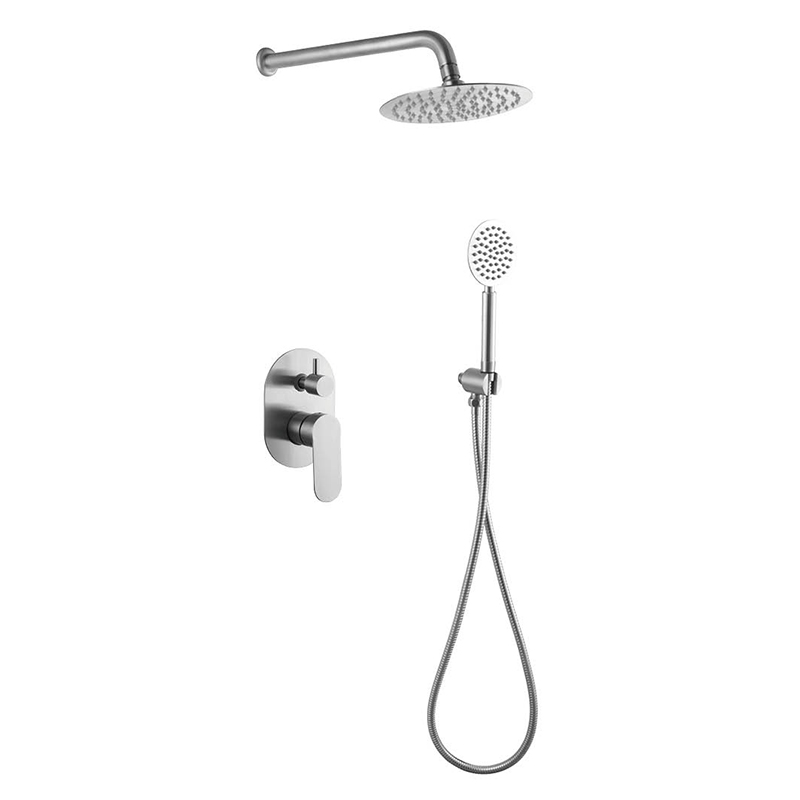

A concealed shower Mixer Set refers to a complete shower system where the main valve body and water pipes are concealed within the wall, with only the control panel, handle, overhead shower, and shower hose visible on the exterior wall. Users can easily mix hot and cold water, switch water flow modes, and adjust the flow rate using the exposed single or double handle panel. This results in a cleaner, more visually appealing shower space and facilitates the integration of various bathroom products. Because the pipes and valve body are embedded in the wall, users avoid touching complex hardware structures while showering, enhancing safety and making it easier to clean walls and glass.
| Material: | Stainless Steel SUS304 ,DR Brass |
| Type: | Concealed |
| Color: | brushed,Chrome, brushed Nickel, Matte Black, Gunmetal, Rose Gold, brushed Rose Gold, Brushed Gold, Gold |
| Application Scenarios: | Kitchen, Farmhouse, Apartment, RV |
| Design Style: | Modern |
| Laser Logo: | Customized Logo (On Handle / Body) |
| Flow Rate: | As Aerator Chooice |
| Aerator: | As Customers' Requirements |
| Cartridge Material: | As Customers' Requirements |
| Air Pressure Testing: | 0.6 Mpa |
| Water Pressure Testing: | 1.0 Mpa |
| Salt Spray Test: | 24 Hours Passed |
| Installation Method: | Under Counter Mounting |
| Number Of Faucet Holes: | Double Hole |
| Installation Ready: | 130cm |
1. Stable Material Configuration
The main body of the Concealed Shower Mixer Set is constructed from a combination of DR brass and SUS304 stainless steel. The internal water circuit withstands long-term pressure testing at 1.0 MPa without leakage, and air pressure testing reaches 0.6 MPa.
2. Diverse Surface Finishes
Exposed parts are available with various electroplating or brushing finishes, including brushed, chrome, brushed nickel, matte black, gunmetal gray, rose gold, and brushed gold. Standard plating thickness is controlled between 0.25 microns and 0.3 microns, meeting the corrosion and cleaning agent resistance requirements of most projects.
3. Concealed Structure
The mixing valve body features a concealed installation structure, designed with a 130 cm pre-installed height, adaptable to standard wall thicknesses and common plumbing and electrical layouts. The water pipes and connectors concealed within the wall undergo 100% water pressure testing before leaving the factory to ensure reliable connections at 1.0 MPa, minimizing the impact of leaks caused by installation errors on the wall and structure.
4. Simple Control
The product supports left and right temperature control modes. Ceramic valve cores or custom-selected valve cores are used between the hot and cold water inlets, enabling a stable mixing ratio at a relatively small opening. Combined with a customized aerator, the actual water flow rate can be controlled within approximately 9 to 12 liters per minute, better balancing comfort and water consumption.
5. Rigorous Testing
Multiple testing processes are conducted before leaving the factory, including air pressure testing, water pressure testing, and salt spray testing. Exposed stainless steel and brass components show no obvious blistering, delamination, or severe discoloration after a 24-hour salt spray test.
1. High-End Residential Bathrooms
The Concealed Shower Mixer Set is suitable for master and secondary bathroom renovations in mid-to-high-end residential projects. The concealed structure reduces exposed piping and complex fittings, making it easier to install glass partitions and storage facilities in limited shower space. For example, in an apartment with a unit area of 80 to 120 square meters, using a concealed system within limited wall space can free up approximately 15% of the visual facade space, enhancing the overall aesthetic.
2. Boutique Apartments and Long-Term Rental Apartments
In boutique apartments and long-term rental apartment projects, developers need to improve the living experience within a limited budget. The Concealed Shower Mixer Set, through standardized components and bulk purchasing, can meet the need for uniform configuration in a large number of rooms. Since the main valve body is hidden within the wall, maintenance and replacement only require removing the decorative panel for valve core maintenance, reducing the probability of large-scale tile removal, shortening vacancy time, and lowering operating costs.
3. Hotel and Resort Projects
Star-rated hotels and resort apartments typically have higher requirements for the visual appeal and functionality of shower spaces. Using this type of concealed shower assembly allows for unified planning of overhead showers, handheld showers, and switching valves, while also reserving space for customized brand logos. According to actual project statistics, using a unified concealed system in hotel room projects can reduce the types of spare parts by approximately 30%, facilitating inventory management and maintenance for the engineering department.
A: For daily use, as long as the inlet water pressure is stable above 0.1 MPa, the hot and cold water mixing and switching functions will work normally. If the on-site water pressure is too low, it is recommended to check whether the filter and valve at the main pipe or water heater end are blocked. If necessary, a booster pump can be installed to ensure that the shower flow reaches a comfortable level.
A: Since the valve body is a concealed structure, it is recommended to reserve a suitable mounting box and inlet/outlet pipe positions before tiling. Generally, a wall thickness of not less than 80 mm is sufficient to meet the embedding requirements of the valve body and pipe fittings. The center height of the panel can be set at approximately 900 to 1100 mm above the ground, depending on the shower area design. Please consult us if you have any questions before installation.
A: The product is designed with future maintenance needs in mind. The valve core and main seals can be removed from the decorative panel side without the need for extensive tile removal. For maintenance, simply close the main water inlet valve, remove the panel and handle to access the internal valve core assembly, replace it, and reinstall it to restore operation.
A: This set comes standard with both overhead and handheld shower units, controlled by a built-in function valve. For projects or brand clients with specific needs, the number of water outlets can be increased or adjusted based on flow rate and piping layout, such as adding bottom or side sprays.
A: Exposed parts undergo multi-layer electroplating or brushing treatment, and durability is verified through thickness testing and salt spray testing during mass production. For normal household cleaning, it is recommended to use a neutral detergent and a soft cloth to wipe the surface, avoiding prolonged use of strong acids or alkalis.
